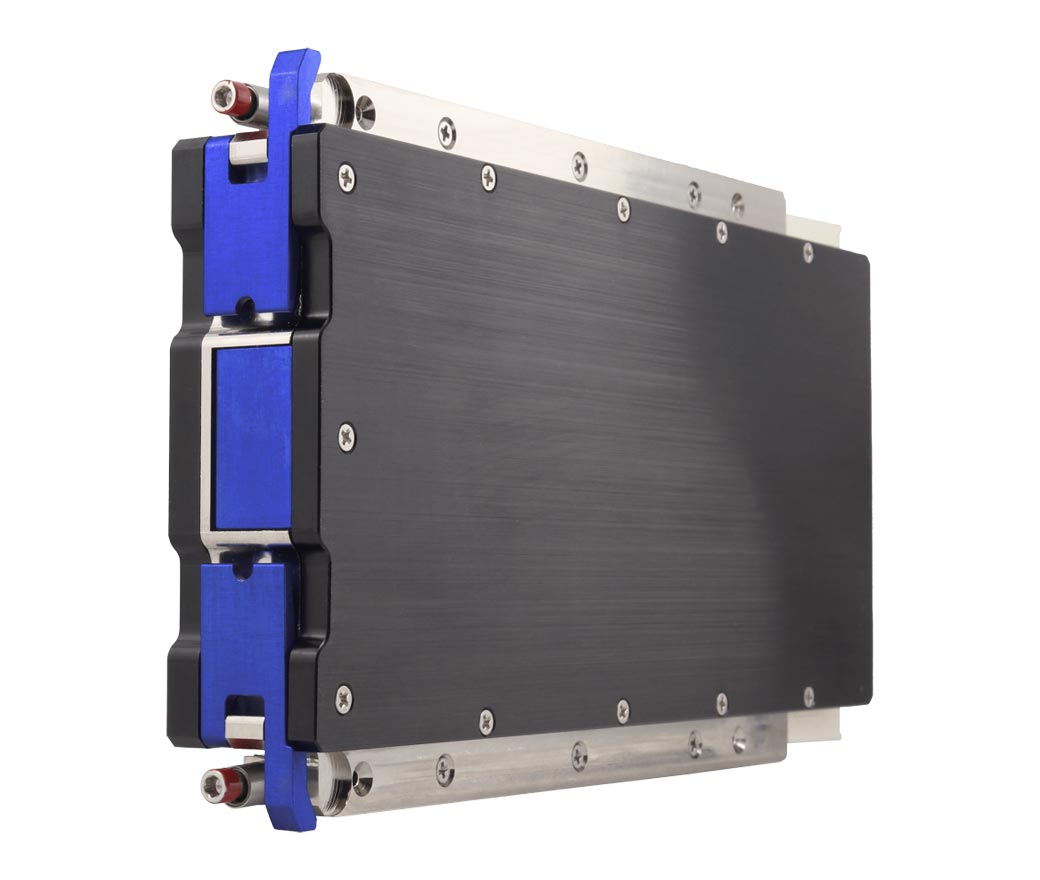

V6068 3U VPX Versal® Premium Adaptive SoC FPGA Optical I/O Module with FMC+ Site

The V6068 is a next generation heterogeneous embedded computing 3U VPX module featuring the AMD Versal® Premium Adaptive System-on-Chip (ASoC), rugged optical and electrical high-speed I/O, FMC+ site, and SOSA aligned profile options. The V6068 provides options for Versal® Premium VP1502/VP1702 part selection. In a single 3U VPX card, the V6068 provides three 100G optical interfaces (300G aggregate), large FPGA fabric, ARM processor cores, and FMC+ site.

The V6068 excels at high-bandwidth interface applications where data is processed or pre-processed locally and then distributed across the VPX backplane or optical interfaces. Use cases include sensor interface, data processing, data distribution, and FPGA co-processing applications. Radar, signals intelligence, electronic warfare, video, storage, medical imaging, and embedded communications systems all can benefit from the V6068 module.

By leveraging the Versal® hard silicon Ethernet interfaces, PCIe controllers, DMA engines, and associated software drivers AMD has enabled a robust ecosystem for high-bandwidth Ethernet performance. In addition to the Ethernet interface, the FPGA fabric provided within the Adaptive SoC part is capable of hosting New Wave DV IP cores for Fibre Channel, ARINC-818, sFPDP, Aurora, and others. This makes the V6068 an ideal hardware platform for mixed interface protocol needs or protocol bridging applications.

The V6068 serves as a standalone data interface and processing solution in a single 3U VPX module. The V6068 provides twelve (12) full duplex optical ports supporting from 1-25G per lane, FPGA fabric resources, ARM processor cores, and FMC+ site. The V6068 can also be used adjacent to CPU’s and/or GPUs in a 3U VPX system. In this arrangement, the adjacent CPU’s/GPUs are unburdened of the data interface overhead and can be dedicated to running high value applications and algorithms with the V6068 feeding them data directly across the backplane.

The inclusion of an FMC+ site enables customization and flexibility to meet specific application requirements, such as RF capability. Further, this configuration supports scalability and future FMC+ module upgrades to increase performance or add new functionalities long into the product’s life.

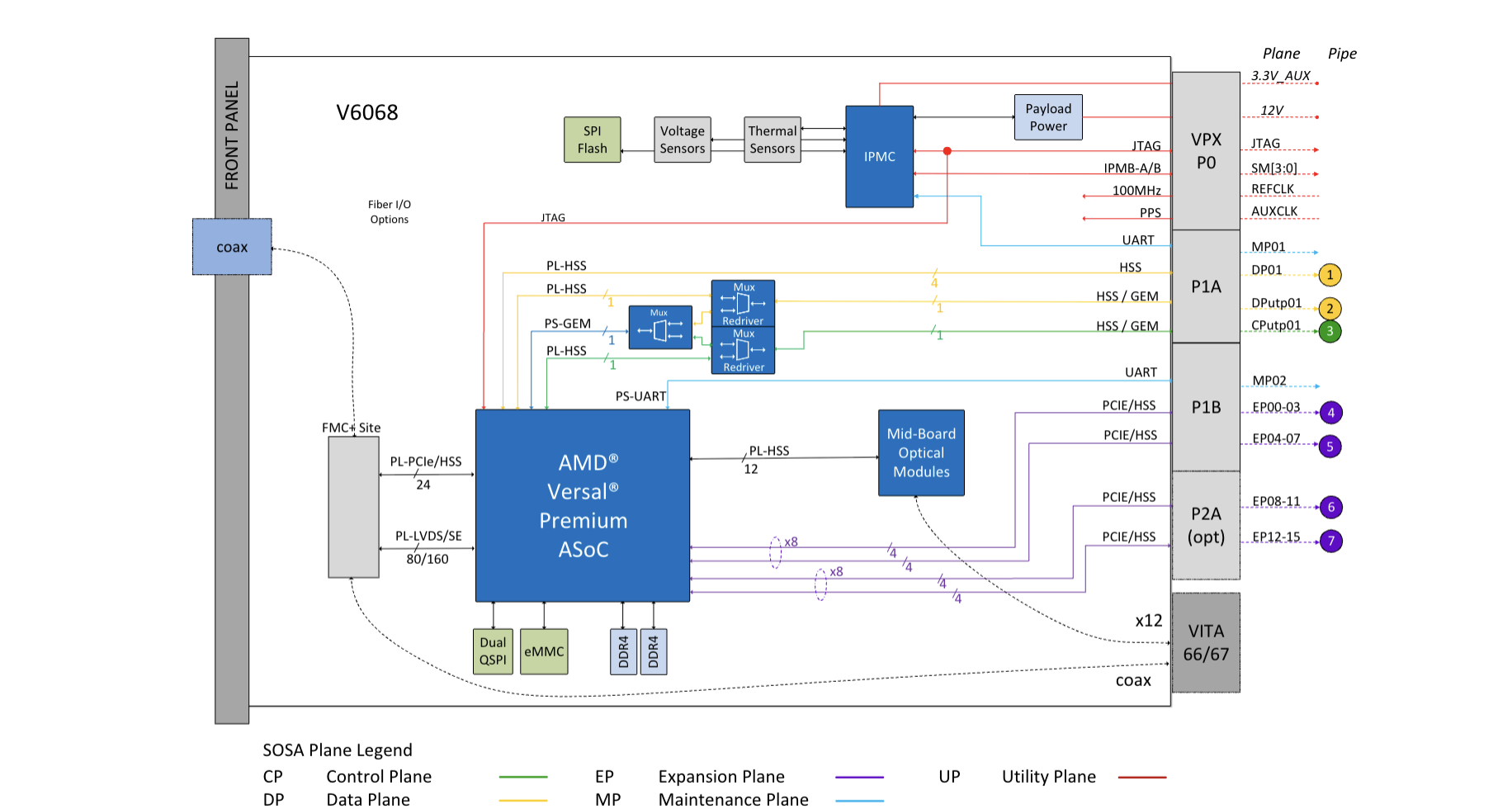

V6068 3U VPX Versal® Premium ASoC FPGA Optical I/O Module with FMC+ Site Features

• Xilinx® Versal® ASoC (FPGA): VP1502/VP1702
• Up to twelve (12) 1G to 25G optical ports via VITA 66 optical backplane I/O
• PCIe Gen3/Gen4 support
• Thermal sensors for monitoring card temperature
• Robust FPGA example design
• 2 banks of 16GB (32GB total) up to 1866MHz / 3733 Mbps LPDDR4 SDRAM
• Compute-intensive profile with FMC+ site routing to the Versal® as PCIe or high-speed serial, FMC+ standard SE/LVDS support
• Front panel and VITA 67 RF IO to FMC+ site

V6068 3U VPX Versal® Premium ASoC FPGA Optical I/O Module with FMC+ Site Applications

• Radar
• Signal Intelligence (SIGINT)
• Communications Intelligence (COMINT)
• Electronic Intelligence (ELINT)
• Electronic Warfare (EW)
• Video
• Heterogenous computing
• High-performance embedded computing (HPEC)
• FPGA co-processing
• AI/Machine learning
• Sensor interfacing
• Multi-level secure networking
• Medical Imaging
• Embedded communications systems

V6068 3U VPX Versal® Premium ASoC FPGA Optical I/O Module with FMC+ Site Benefits

• Heterogeneous computing card combining hard ARM processor cores, large FPGA fabric, and high-bandwidth interfaces
• Designed specifically for sensor interface, digital signal processing, video processing, application co-processing, and secure networking
• HPEC focus, 3U VPX, VITA 57 FMC+ compliance, VITA 47 compliance, SOSA aligned options
• Versatile design supports electrical and optical interfaces, optical options for both backplane or front-panel I/O
• Modular optics for flexibility in supporting 1-25G per lane
